Advanced Features of HIWIN Torque Motor Rotary Tables
In the machine tool industry, as various sectors demand higher precision, speed, and multi-axis machining capabilities, traditional methods can no longer meet the challenges of increasingly complex machining tasks. HIWIN’s Torque Motor Rotary Tables reduce mechanical transmission structures, achieving zero backlash and improving overall machining stability. By integrating these tables, machining centers can be upgraded to 3+1 axis, 4-axis, or 5-axis systems, enabling one-time clamping machining. This advancement boosts efficiency and productivity while meeting the high-precision requirements of industries such as aircraft, automotive, and more.

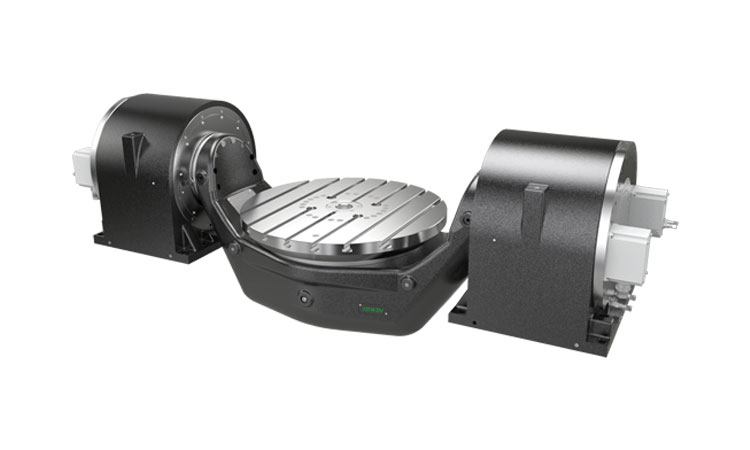

RAB Series: High-Speed Dual-axis Rotary Tables
HIWIN’s RAB series, featuring dual-axis synchronous functionality and 1,000 rpm high-speed capability, is essential for five-axis machining centers. Addressing the needs of the aircraft, medical biotechnology, and electric vehicle industries, the RAB series incorporates a water-cooled direct-drive Torque Motor, high-rigidity Rotary Table bearings, absolute-type encoders, and powerful clamps. With high speed and torque, the RAB series achieves up to 1,000rpm, significantly enhancing machining efficiency and accuracy, making it ideal for milling-turning combined equipment.
RAS Series: Compact Dual-axis Rotary Tables
HIWIN’s RAS series features dual-axis motion, with a rotating axis and a tilting axis, enabling machining from multiple angles. Its compact design makes it perfect for five-axis machines with limited installation space, offering high speed, precision, and versatility for machining complex workpieces.
RCV Series: High-Performance Vertical Rotary Tables
HIWIN’s RCV series Rotary Tables feature maintenance-free, water-cooled Torque Motors for high acceleration and torque. These directly driven precision axes achieve exceptional accuracy, and are compatible with standard control systems. Their robust Crossed Roller Bearings provide high load capacity and tilt resistance, ensuring reliable performance.
RCH Series: Heavy-Duty Horizontal Rotary Tables
HIWIN’s RCH series of horizontal Rotary Tables, designed with single-sided bearings , are directly driven and maintenance-free. Using water-cooled Torque Motors, they deliver high acceleration and torque. With axial/radial bearings and a tilt-resistant design, these tables can handle maximum loads while maintaining high precision and stability.
Versatile Applications Across Industries
HIWIN Rotary Tables cater to various industries, including aircraft, automotive, and medical. They excel in machining complex surfaces and achieving strict quality standards, such as in turbine blades and engine cylinders. Other applications include composite machining for car wheel frames, artificial joints, and metal housings for 3C products, all benefiting from improved accuracy and efficiency.
