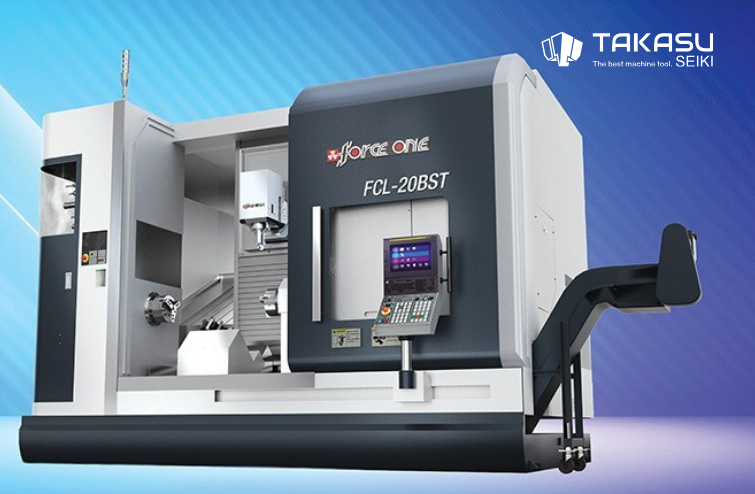

The FCL 20BTS from Forceone Machinery is a high-performance 5-axis CNC lathe engineered for precision, productivity, and process consolidation. With a robust construction and advanced motion control, it enables complex machining in a single setup, significantly reducing cycle time while improving geometric accuracy.
Built on a single-piece Meehanite cast base, the machine offers outstanding vibration damping and long-term stability. Its preloaded double-nut ball screws ensure backlash-free movement and consistent precision across operations. The integrated B-axis swivels ±120°, along with high-accuracy C-axis control, enabling simultaneous multi-axis machining of intricate geometries.
An innovative Automatic Tool Changer (ATC) supports up to 32 tools (max tool weight 7 kg), supporting a wide range of cutting strategies with fast, reliable indexing. Generous work envelopes (machining lengths of 1330 / 1830 / 2830 mm, X-travel 550 mm, Y-travel 300 mm) accommodate varied part sizes, particularly long shafts and complex components. Spindle-to-turret nose reach options (700, 1200, 2200 mm), and upgradeable spindle nose configurations (A2-6 / A2-8 / A2-11) provide further flexibility.
Key Capabilities
• Single-setup machining: Turning + milling integration reduces setups, boosts accuracy
• 5-axis contouring: Enables tight-tolerance complex geometries
• Gear machining (optional): Hobbing + power skiving program support
• Flexible part handling: Ideal for small-batch precision jobs to long-shaft production
Optional features—lower turret & steady rest—enhance productivity and rigidity
Applications & Industries
• Aerospace: Structural parts, housings, shafts
• Medical: Precision implants, surgical components
• Marine: High-rigidity propulsion and structural parts
• Automotive & General Manufacturing: Engine components, prototypes, custom precision parts
• Construction Machinery: Gear housings, impellers, hydraulic + pump assemblies
Optional Enhancements
• Hollow ballscrews with coolant
• Lower turret
• Sub-spindle with synchronous control
• Smart machine monitoring & preventive system
The FCL 20BTS is the ideal multitasking platform for manufacturers pursuing greater throughput, minimized setup time, and advanced machining capability—whether in aerospace, medical, automotive, or precision volume manufacturing.
