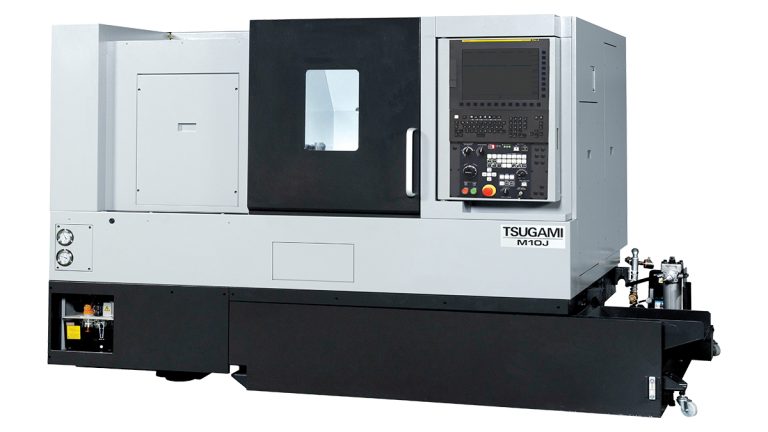

The TSUGAMI M10J is a high-performance CNC turning center designed for large-diameter and heavy-duty machining applications.
With a maximum machining diameter of 400 mm and a machining length of 500 mm, it is built to handle demanding, large-scale components with ease.
Equipped with a powerful 10-inch chuck, a 15/18.5 kW built-in spindle motor, and high-rigidity construction, the M10J delivers superior precision and efficiency for industries requiring consistent quality in large workpiece production.
Engineered for stability, the M10J features a robust bed structure, box slideways on the X-axis, and a 12-station servo turret that supports turning, drilling, and boring in a single setup.
Advanced features such as thermal displacement compensation, a 130 mm spindle bearing ID with 90 mm bore, spindle air purge, and a servo tailstock ensure exceptional accuracy, extended spindle life, and long-term reliability in continuous production.
To maximize productivity, the M10J is automation-ready, with compatibility for tool setters, work catchers, and NC gantry loaders to support unmanned operations.
Its combination of power, precision, rigidity, and automation flexibility makes it ideal for the automotive, aerospace, oil & gas, and pump & motor industries.
Tsugami’s lineup also includes the M10JL10-II with 1 m machining length, and the M10D turn-mill variant for advanced multi-tasking—delivering better revenue per sq. ft.
