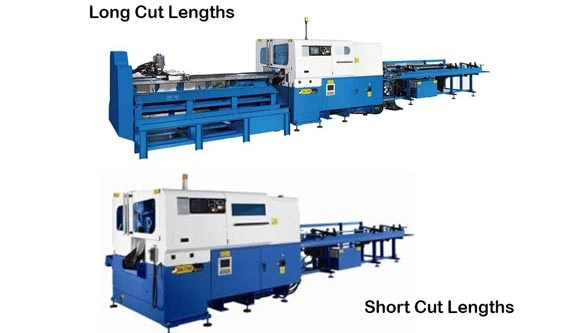

OD 80 mm HIGH SPEED TUBE and SOILD BAR CUTTING MACHINES
2 ELECTRIC AXIS & MBLL6 BUNDLE LOADER
U type ( Ferrous TCT + HSS )
NF / NFA type ( Non-Ferrous / Aluminum )
The new SOCO Tube and Solid Bar Cutting Line incorporates the newest technology with unparalleled functions. This revolutionary innovation brings you the unique loader ( MBLL6 ) , saving 70% labor and material changeover time ( SOCO Global Patent ). With capacity up to OD80mm in solid bar and tube cutting, it is guaranteed to bring you continuous savings and production.
Savings & Production
- Using a thinner and smaller TCT Saw Blade, there is lower initial investment in blade andlong term savings in material.
- HSS Saw Blades may also be used, with standard built-in settings and blade cooling
system, for even more savings on tube cutting.
Performance
- Superior Tube and Solid Bar Cutting Speed:
- OD10mm Mild Steel Bar, L = 10mm, Cycle time = 5.5 secs
- OD42mm Mild Steel Bar, L = 230mm, Cycle time = 17 secs
- OD80mm Mild Steel Bar, L = 12.2mm, Cycle time = 18.5 secs
Dynamic Cutting:
- Fast Approach Speed
- Low Speed during blade entry
- High Speed after cutting through the tube’s wall
- Lowest Speed at re-entry into tube’s lower wall
Long Blade Life:
- Superior Designed Gearbox
- Electromagnetic Brake System
- ” 0 ” Backlash
- Accuracy and Precision
- Electric Servo Cutting
- Electric Servo Feeding
- Floating Feeding Carriage
- Cutting length precision : +/- 0.05 mm ~ +/- 0.1 mm
Automation
- MBL-6 Bundle Loader – Saving 70% labor and material changeover time
- Automatic Material Alignment : Automatically align all material before loading onto the machine
- Shortest Material Changeover Time : While one stock bar is cutting, the next one is aligned and follows immediately behind to shorten changeover time
- Bundle capacity up to 4000kg
For more information write to ravikengineering@engreview.in
